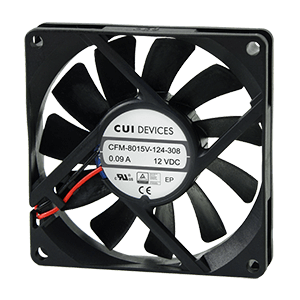

CFM-8015V-130-347
Recommended Replacement

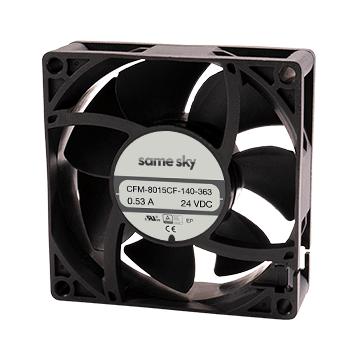

CFM-8015BF-130-301
12 V, 0.26 A, 80 x 80 x 15 mm, Dc Fan
CFM-8015CF-130-301
12 V, 0.26 A, 80 x 80 x 15 mm, Dc Fan
12 V, 188 mA, 80 x 80 x 15 mm, Dc Fan
Specifications
Type | Description | |
---|---|---|
Bearing Type | omniCOOL™ |
|
Air Flow (CFM) | 37 |
|
Rated Speed (RPM) | 3000 |
|
Static Pressure (inH2O) | 0.14 |
|
Noise (dBA) | 34.7 |
|
Rated Voltage (Vdc) | 12 |
|
Max Input Current (mA) | 188 |
|
Tachometer Signal | No |
|
Rotation Detector | No |
|
PWM Control Signal | No |
|
Dimensions LxWxH (mm) | 80 x 80 x 15 |
|
Operating Temp Range (°C) | -10 ~ 70 |
|
Series | CFM-80V |
|
