CFM-80V Series

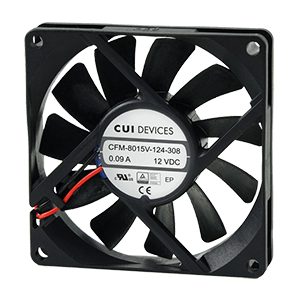

CFM-8015V-124-308-20

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

Recommended Replacement

CFM-8015BF-130-301-20 12 V, 0.26 A, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal

CFM-8015CF-130-301-20 12 V, 0.26 A, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal

12 V, 104 mA, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal

Datasheet

Specifications
Technical Docs
Compliance
Other Resources

Specifications

Type	Description	Select
Bearing Type	omniCOOL™
Air Flow (CFM)	30
Rated Speed (RPM)	2400
Static Pressure (inH2O)	0.09
Noise (dBA)	30.8
Rated Voltage (Vdc)	12
Max Input Current (mA)	104
Tachometer Signal	Yes
Rotation Detector	No
PWM Control Signal	No
Dimensions LxWxH (mm)	80 x 80 x 15
Operating Temp Range (°C)	-10 ~ 70
Series	CFM-80V

Technical Docs

Datasheet

Compliance

Product Notifications RoHS & REACH CE Declaration of Conformance

Other Resources

Thermal Calculators Thermal Design Services Custom Thermal Solutions Value-Added Resellers
