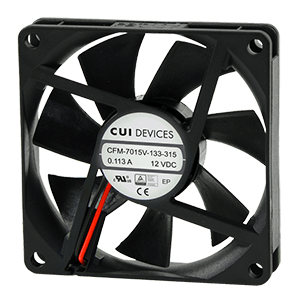

CFM-7020V-232-330-20
Recommended Replacement

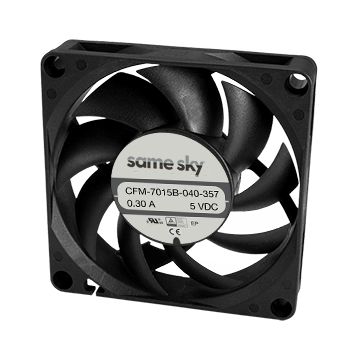

CFM-7015B-250-406-20
24 V, 0.17 A, 70 x 70 x 15 mm, Tachometer Signal, Dc Axial Fan
CFM-7015C-250-406-20
24 V, 0.17 A, 70 x 70 x 15 mm, Tachometer Signal, omniCOOL™ Dc Axial Fan
24 V, 76 mA, 70 x 70 x 20 mm, Dc Fan, Tachometer Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 29 |
|
| Rated Speed (RPM) | 3200 |
|
| Static Pressure (inH2O) | 0.14 |
|
| Noise (dBA) | 33 |
|
| Rated Voltage (Vdc) | 24 |
|
| Max Input Current (mA) | 76 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 70 x 70 x 20 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-70V |
|
