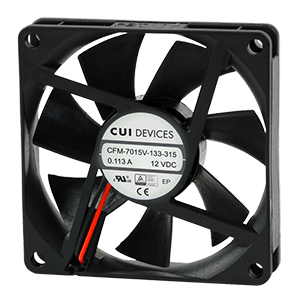

CFM-7020V-126-260-20
Recommended Replacement

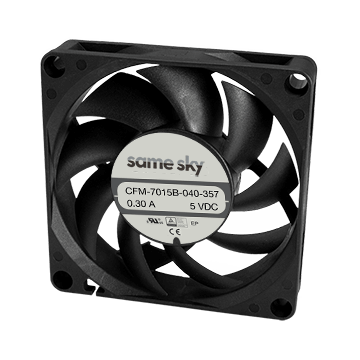

CFM-7015B-140-357-20
12 V, 260 mA, 70 x 70 x 15 mm, Dc Fan, Tachometer Signal
CFM-7015C-140-357-20
12 V, 260 mA, 70 x 70 x 15 mm, Dc Fan, Tachometer Signal
12 V, 89 mA, 70 x 70 x 20 mm, Dc Fan, Tachometer Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 23.5 |
|
| Rated Speed (RPM) | 2600 |
|
| Static Pressure (inH2O) | 0.09 |
|
| Noise (dBA) | 26 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 89 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 70 x 70 x 20 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-70V |
|
