MES20 Series

MES20 Series

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

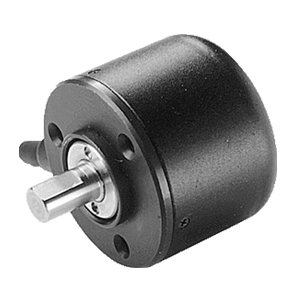

32 mm, 40 ~ 3600 PPR, Square Wave, Incremental, Optical Shaft Encoder

Specifications

Type Description
Select
Shaft Length (mm) 10
Shaft (Bore) Ø (mm) 5.5
Operating Temp. (°C) -10 ~ 70
Speed, Max. (RPM) 6000
