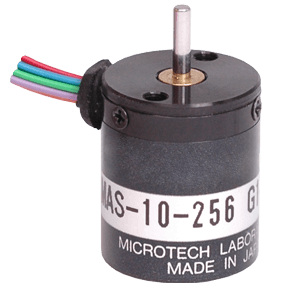

MAS10-256G

MAS10-256G

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

13 mm, 8 Bit, Gray Code, Absolute, Optical Shaft Encoder

Specifications

Type Description
Select
Input Voltage (Vdc) 4.75 ~ 5.25
Shaft Length (mm) 6
Shaft (Bore) Ø (mm) 1.5
Operating Temp. (°C) 0 ~ 60
Speed, Max. (RPM) 6000

Technical Docs
