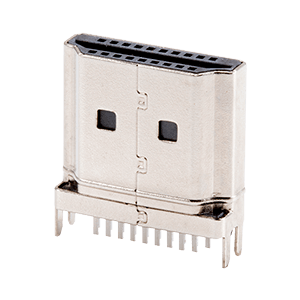

HD03-19-P-FR
HDMI 2.1, Plug Connector, 19 Position, Vertical, Free Hanging, Tray Packaging
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Plug |
|
| HDMI Type | Type A |
|
| HDMI Standard | HDMI 2.1 |
|
| Number of Contacts | 19 |
|
| Number of Ports | 1 |
|
| Voltage Rating (Vdc) | 40 |
|
| Current Rating (A) | 0.5 |
|
| Termination | Solder |
|
| Mating Cycles | 10000 |
|
| Mounting Style | Free Hanging |
|
| Orientation | Vertical |
|
| Shielding | No |
|
| Finish Thickness | 4.55 |
|
| Dimensions WxH (mm) | 14 x 4.55 |
|
| Dimensions WxH (in) | 0.55 x 0.18 |
|
