MD2-40ST

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

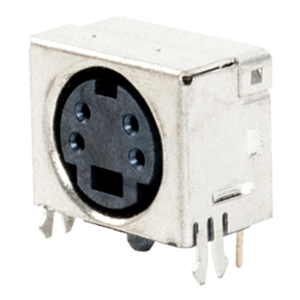

Mini DIN Receptacle, Slim Type, Right-Angle PCB Mount Full Shield 4P

Specifications
Technical Docs
Compliance
Other Resources

Specifications

Type	Description	Select
DIN Standard	Mini
Connector Type	Jack
Mounting Style	Through Hole
Current Rating (A)	1
Shielding	Yes
Number of Contacts	4
Orientation	Horizontal
Internal Switch(es)	0
Voltage Rating (Vac)	100

Technical Docs

Compliance

Product Notifications RoHS & REACH
