PJ1-023

PJ1-023

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

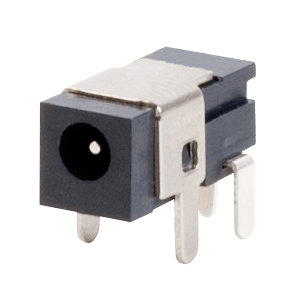

0.65 x 2.8 mm, 1.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector


Specifications

Type Description
Select
Connector Type Jack
Inner Diameter (mm) 0.65
Outer Diameter (mm) 2.8
Insertion Depth/Length (mm) 8
Mounting Style Through Hole
Orientation Horizontal
Voltage Rating (Vdc) 24
Current Rating (A) 1
Number of Conductors 2
Internal Switch(es) 1
Shielding Yes
Dimensions LxWxH (mm) 12 x 5.6 x 5.2
