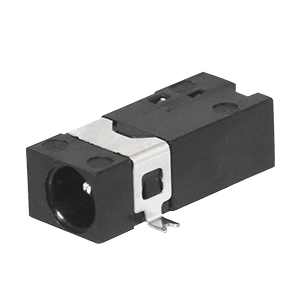

PJ-094H-SMT-TR
0.65 x 2.75 mm, 2.5 A, Horizontal, Surface Mount, Shielded, Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 0.65 |
|
| Outer Diameter (mm) | 2.75 |
|
| Insertion Depth/Length (mm) | 8 |
|
| Mounting Style | Surface Mount |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 24 |
|
| Current Rating (A) | 2.5 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 1 |
|
| Shielding | Yes |
|
| Dimensions LxWxH (mm) | 11 x 4.5 x 3.4 |
|
