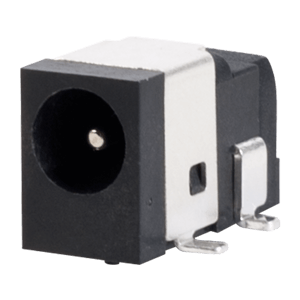

PJ-030CH-SMT-TR
1.0 x 4.2 mm, 3.5 A, Horizontal, Surface Mount (SMT), Shielded, Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 1 |
|
| Outer Diameter (mm) | 4.2 |
|
| Insertion Depth/Length (mm) | 6.6 |
|
| Mounting Style | Surface Mount |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 24 |
|
| Current Rating (A) | 3.5 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 1 |
|
| Shielding | Yes |
|
| Dimensions LxWxH (mm) | 11.4 x 5.5 x 7.5 |
|
