SJ2-3593C-SMT-TR

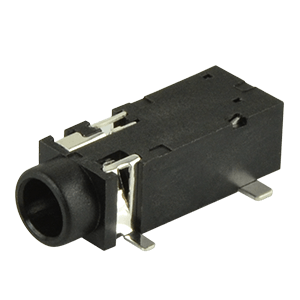

Front - Right
Back View

SJ2-3593C-SMT-TR

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

3 conductor, 3.5 mm, SMT Audio Jack w/ Ring Switch

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Mounting Style Surface Mount
Shielding No
Voltage Rating (Vdc) 12
Current Rating (A) 1
Number of Conductors 3
Orientation Horizontal
Series SJ2-359X-SMT
Internal Switch(es) 1
Number of Ports 1
Color Black

Technical Docs

Datasheet

Other Resources

Buy from Same Sky
