SJ2-25964A-SMT-TR
SJ2-2596X-SMT Alternate View Front
SJ2-2596X-SMT Alternate View Back

SJ2-25964A-SMT-TR

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

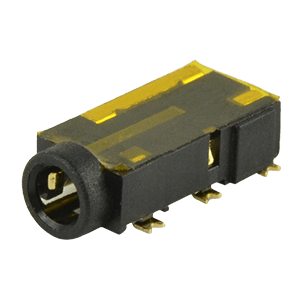

2.5 mm, Stereo, Right Angle, Surface Mount (SMT), 4 Conductors, 0 Internal Switches, Audio Jack Connector

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 2.5
Current Rating (A) 1
Number of Conductors 4
Mounting Style Surface Mount
Orientation Horizontal
Shielding No
Internal Switch(es) 0
Number of Ports 1
Color Black
Series SJ2-2596X-SMT
Voltage Rating (Vdc) 12
