SJ2-25923B-SMT-TR
SJ2-2592X-SMT Alternate View Front
SJ2-2592X-SMT Alternate View Back

SJ2-25923B-SMT-TR

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

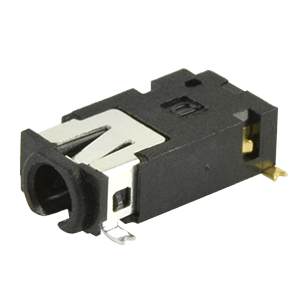

3 conductors, 2.5mm, SMT Audio Jack w/ Tip Switch

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 2.5
Number of Conductors 3
Mounting Style Surface Mount
Orientation Horizontal
Shielding No
Internal Switch(es) 1
Voltage Rating (Vdc) 12
Number of Ports 1
Current Rating (A) 1
Color Black
Series SJ2-2592X-SMT
