SJ-358XNG Series
SJ-358XNG Series
SJ-358XNG Series Back View

SJ-3580ANG

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

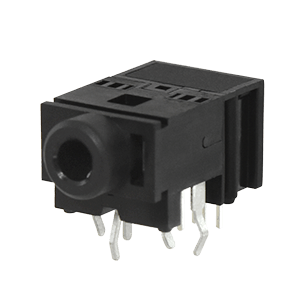

3.5 mm, Stereo, Right Angle, Through Hole, 3 Conductors, DPDT Switch, Audio Jack Connector

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 1
Mounting Style Through Hole
Shielding No
Number of Conductors 3
Orientation Horizontal
Series SJ-358XNG
Internal Switch(es) DPDT
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
