MJ1-2533-SMT-TR
MJ1-2533-SMT Alternative version 1
MJ1-2533-SMT Alternative version 2

MJ1-2533-SMT-TR

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

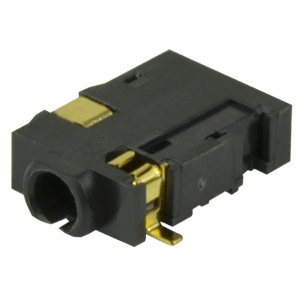

2.5 mm, Mono, Right Angle, Surface Mount (SMT), 2 Conductors, 1 Internal Switch, Audio Jack Connector

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 2.5
Number of Conductors 2
Mounting Style Surface Mount
Orientation Horizontal
Voltage Rating (Vdc) 16
Current Rating (A) 0.3
Shielding No
Internal Switch(es) 1
Number of Ports 1
Color Black

Technical Docs

Other Resources
