CMS-15118-30-SP
Recommended Replacement
CMS-15118D-SP

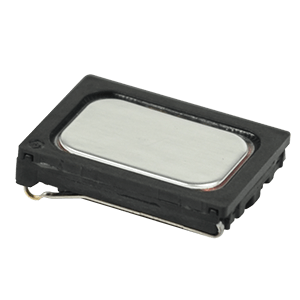

15 x 11 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Speaker
15 mm x 11 mm, Rectangular Frame, 0.7 W, 8 Ohm, Nd-Fe-B Magnet, Mylar Cone
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 90 (0.7 W / 0.1 m) |
|
| Nominal Input (W) | 0.7 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 500 |
|
| Cone Type | Mylar |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 15 x 11 x 3 |
|
| Dimensions LxWxH (in) | 0.59 x 0.43 x 0.118 |
|
| Mounting Style | Spring Terminals |
|
